AirSim® Bronchi

Skills

• Diagnostic bronchoscopy
• Single lung isolation techniques
• Oral intubation
• Nasal / nasotracheal intubation
• Supraglottic airway device insertion (full range)
• Direct laryngoscopy
• Fibre optic intubation & examination
• Endotracheal tube insertion
• Combi tube insertion
• Nasogastric (NG) tube insertion techniques

Features

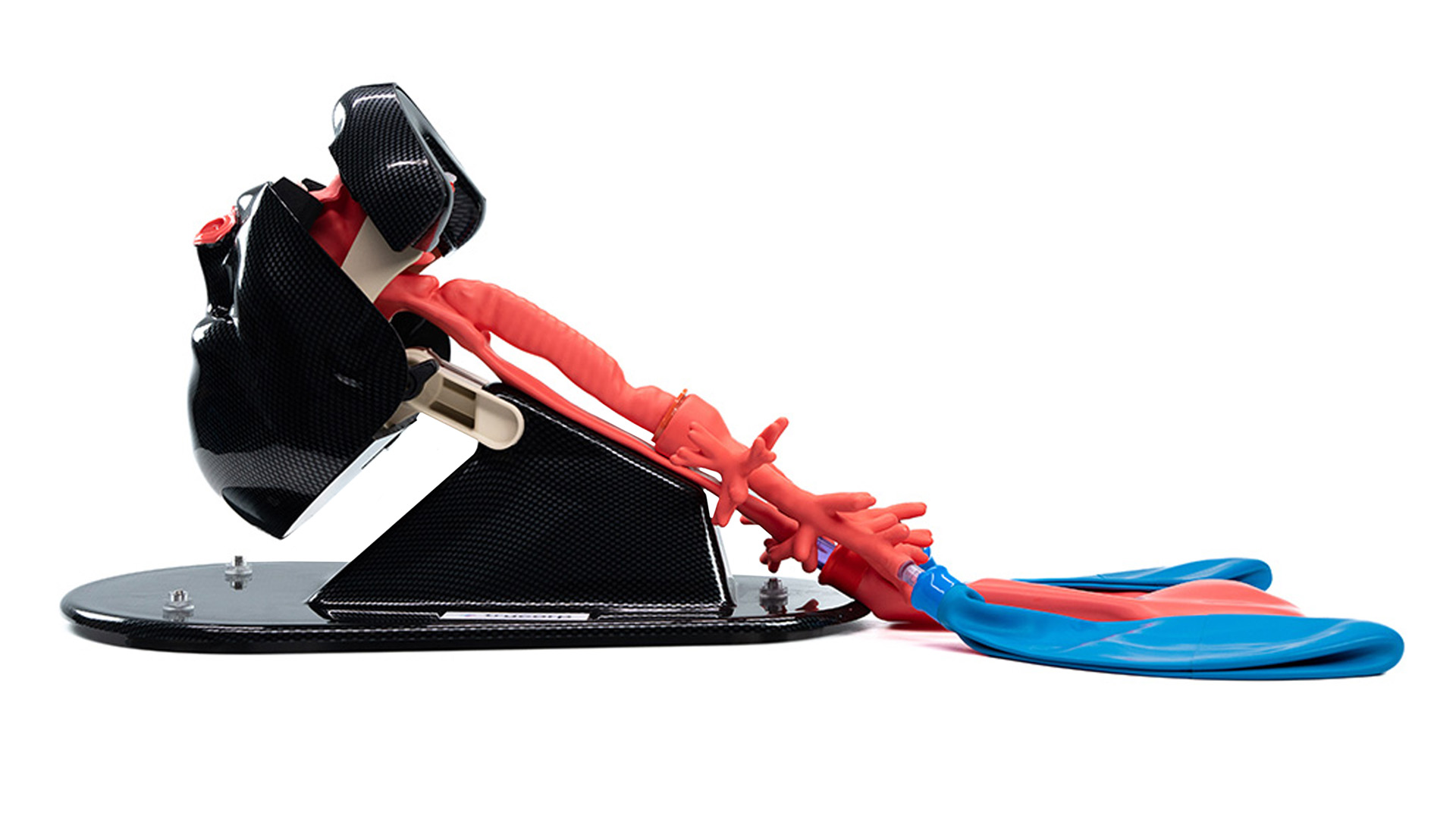

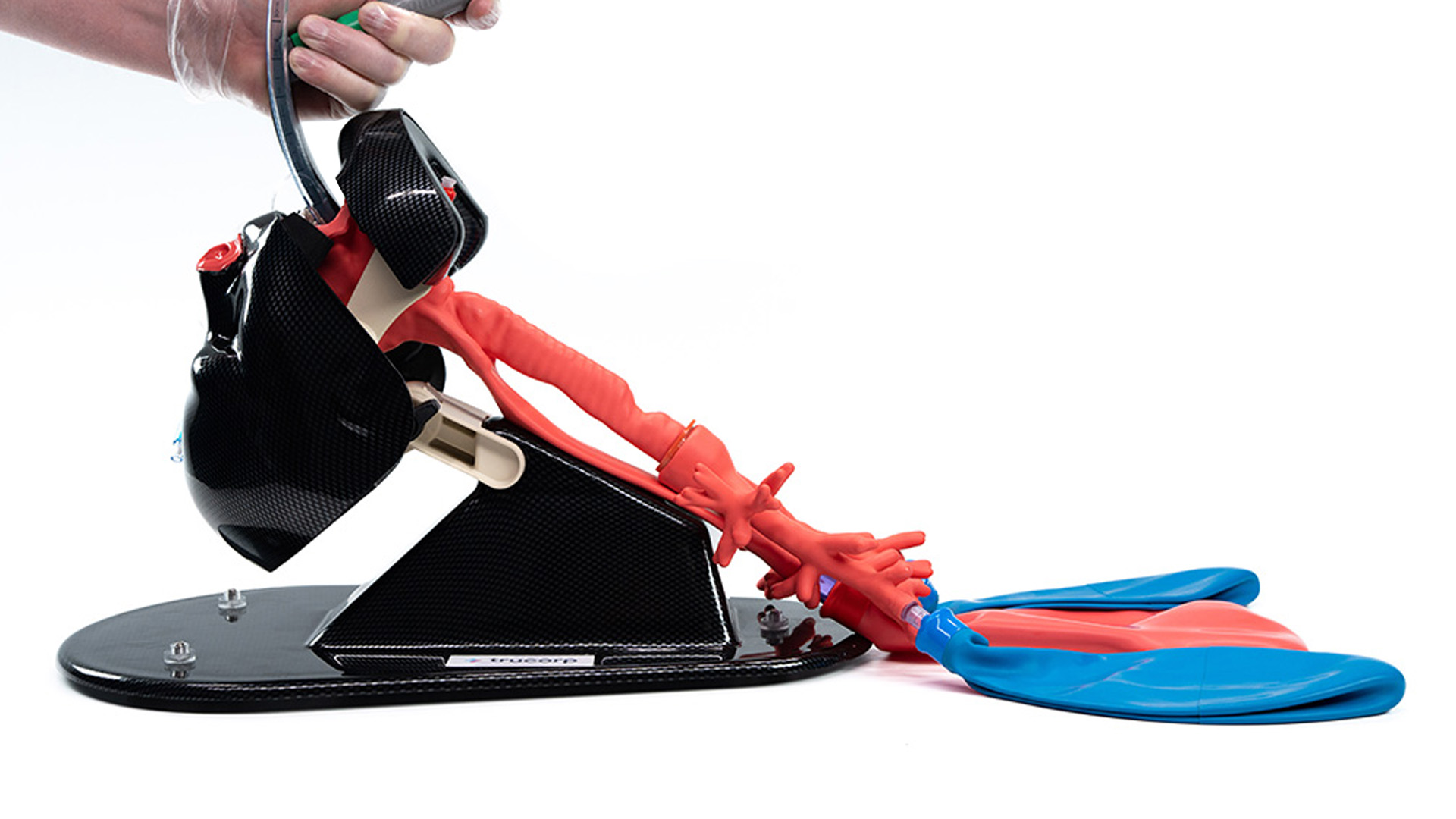

AirSim® Bronchi is designed for both foundational airway training and bronchoscopy skills development. It replicates the full anatomically accurate AirSim® airway, from nasal turbinates through to the carina, and extends to fourth-generation bronchi, including the bronchus and bronchioles, providing a clinically accurate environment for bronchoscopy and lung isolation training.

Tongue oedema can be introduced via an inflatable tongue bulb to simulate a difficult airway scenario. Integrated visual indicators of stomach inflation and lung expansion provide immediate feedback to reinforce correct ventilation and airway management technique. Adjustable neck locks allow the manikin to be secured into various positions.

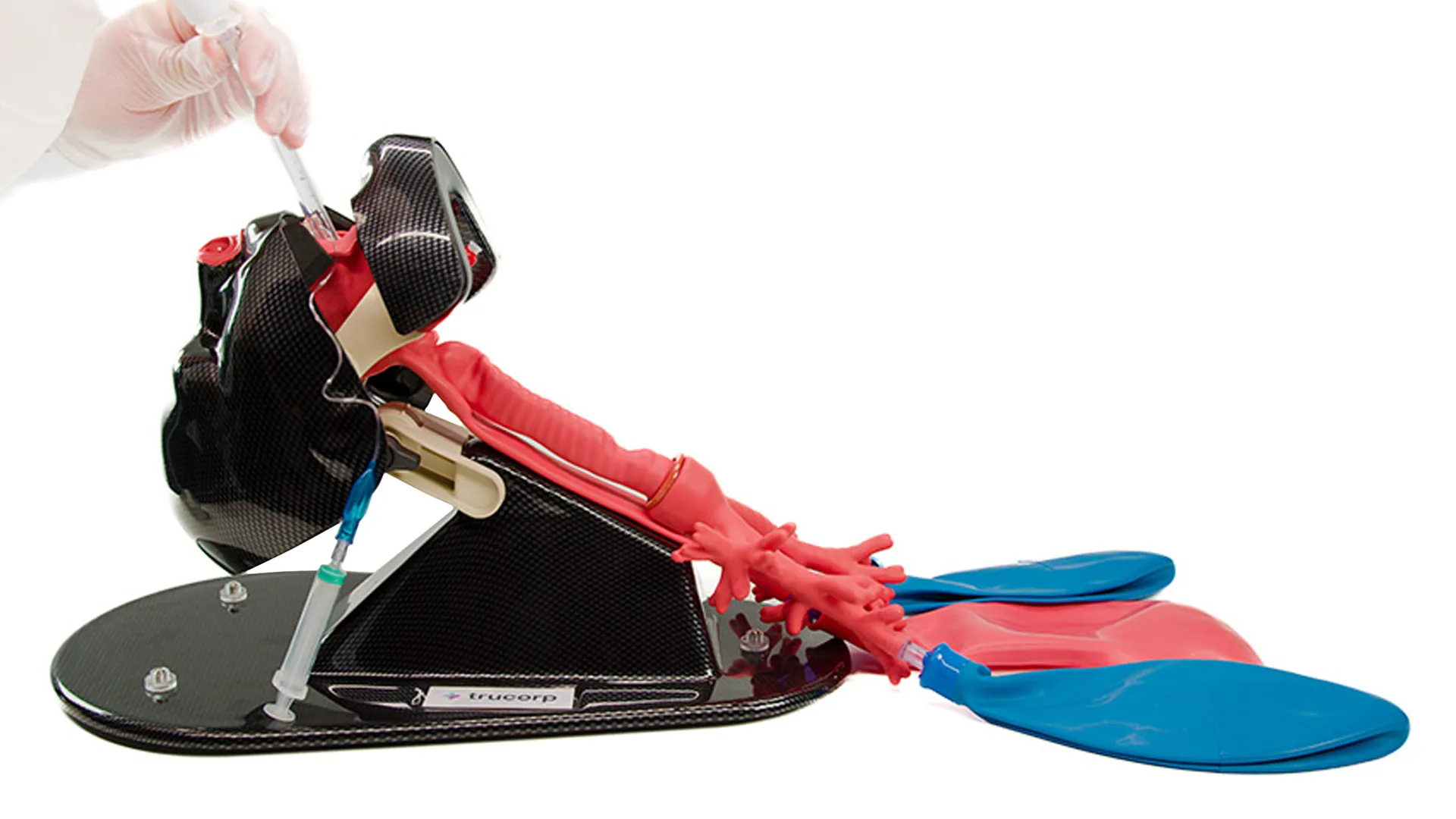

Delivered ready to use in a durable carry case. Set-up time is under 5 minutes. Remove the manikin from the carry case, then spray the airway and nasal passage generously with the lubricant provided.

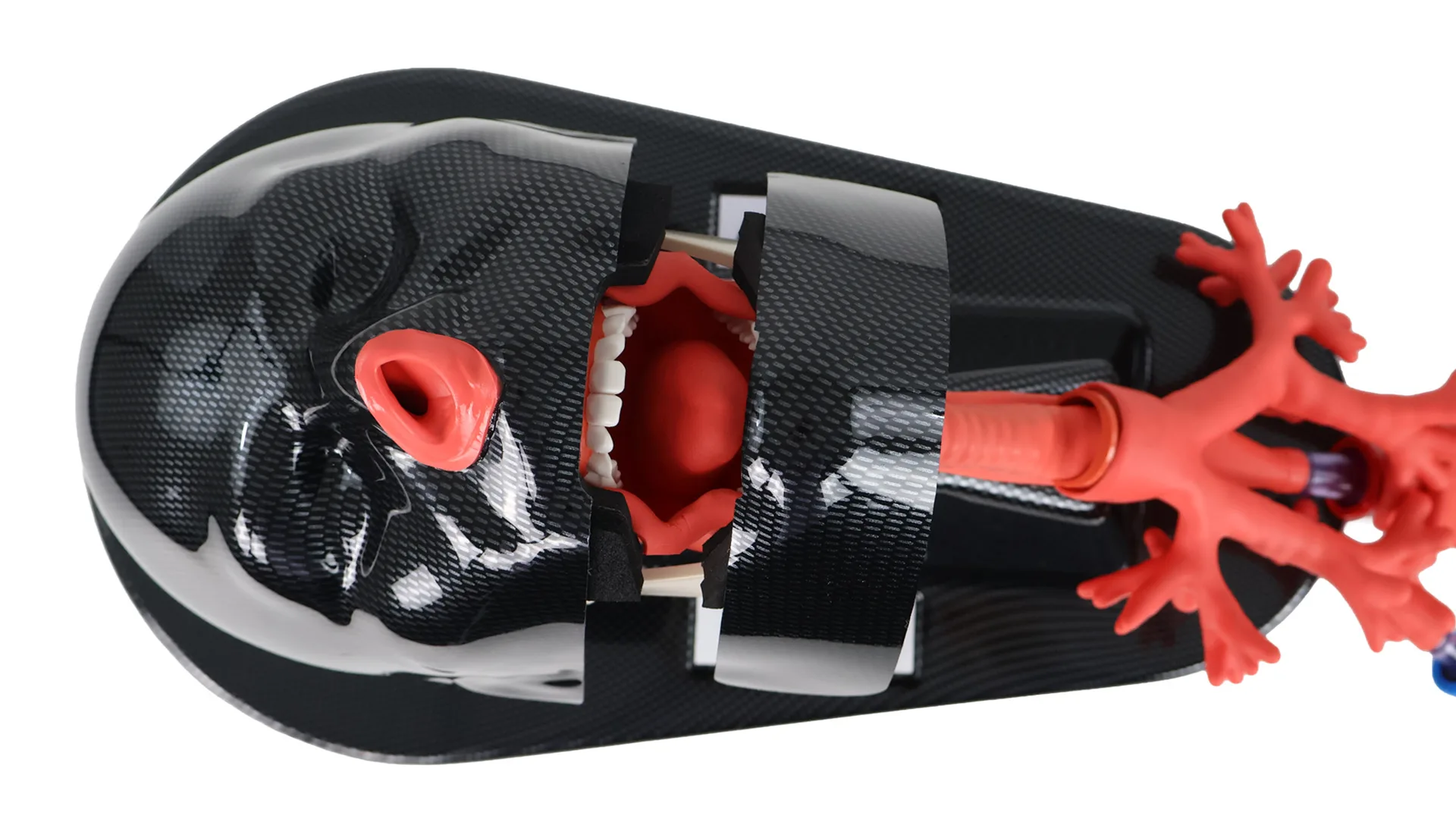

• Anatomically accurate airway with landmarks from nasal turbinates to fourth-generation bronchi
• Adjustable neck locks for varied head positioning
• Inflatable tongue bulb to simulate tongue oedema / difficult airway

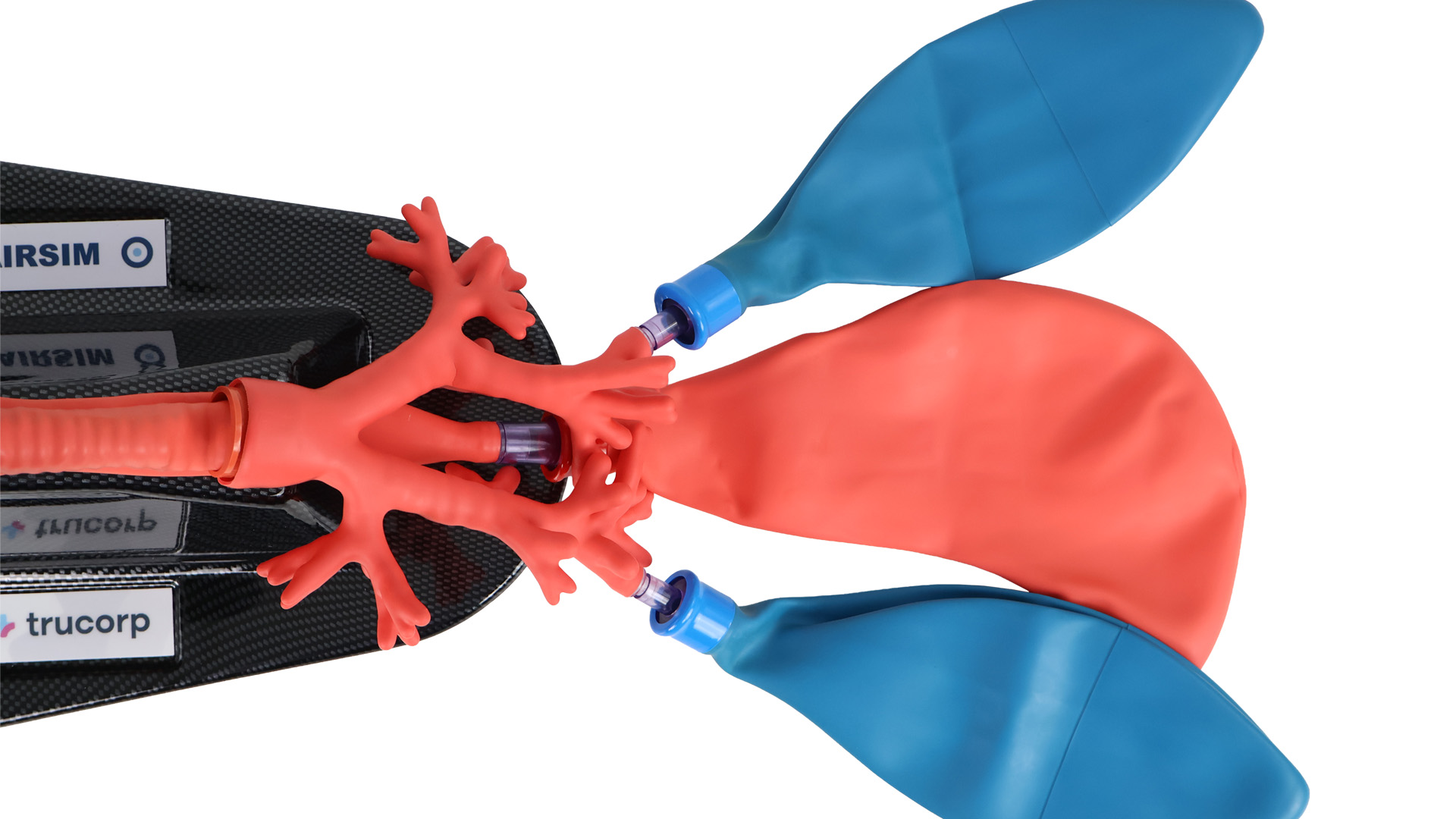

• Visual stomach inflation and lung expansion indicators
• Certified for 80,000+ intubation cycles
• Ready to use, under 5-minute set-up

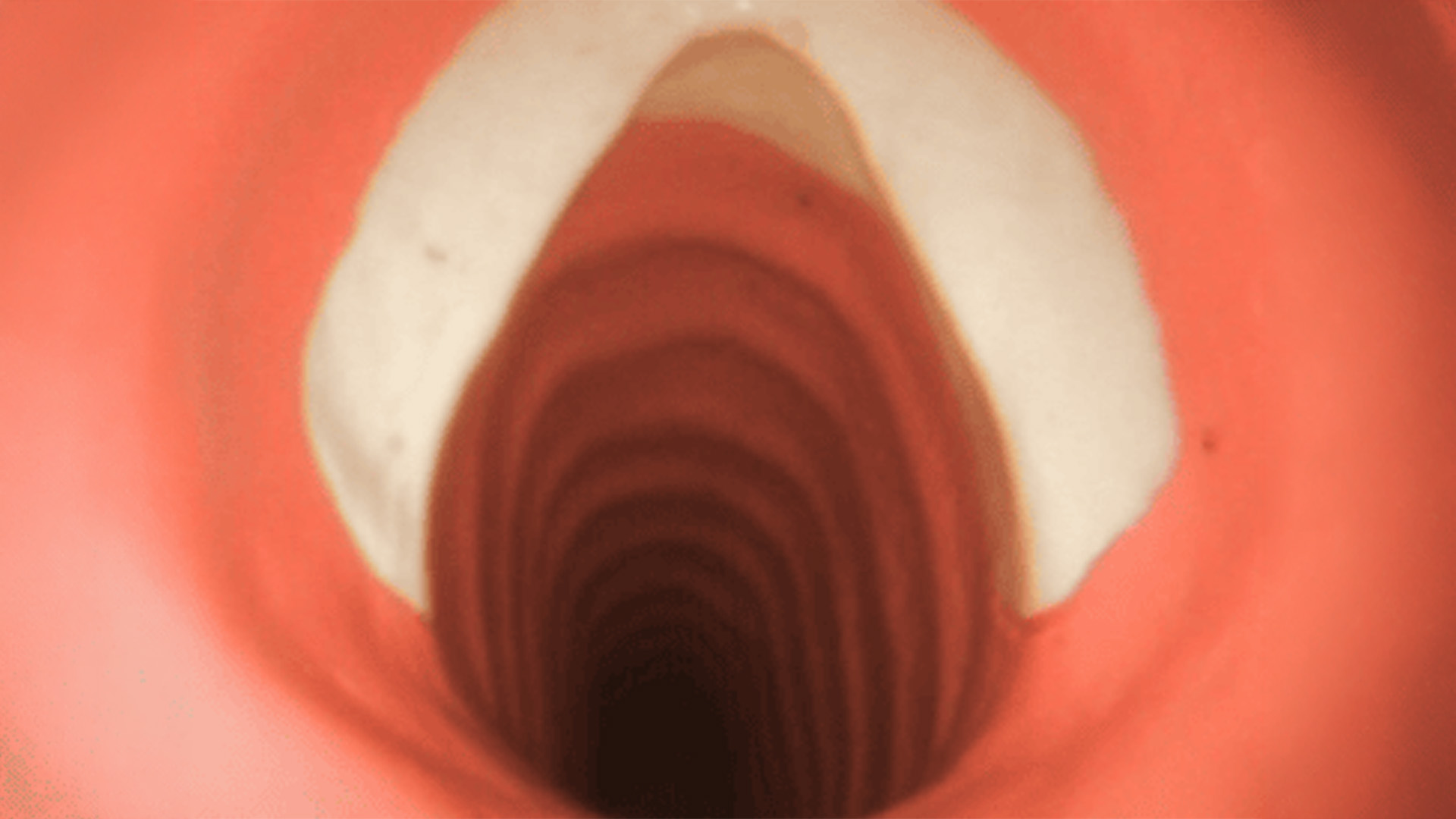

Anatomically Accurate Landmarks

The AirSim® airway delivers true-to-life anatomical visualisation of the following landmarks:

Nasopharynx:

• Nasal turbinates

Oropharynx:

• Tongue
• Uvula
• Vallecula

Laryngopharynx:

• Epiglottis
• Arytenoid cartilage
• Oesophageal opening

Larynx:

• Glottis
• Vocal cords

Lower Airway:

• Tracheal rings
• Carina

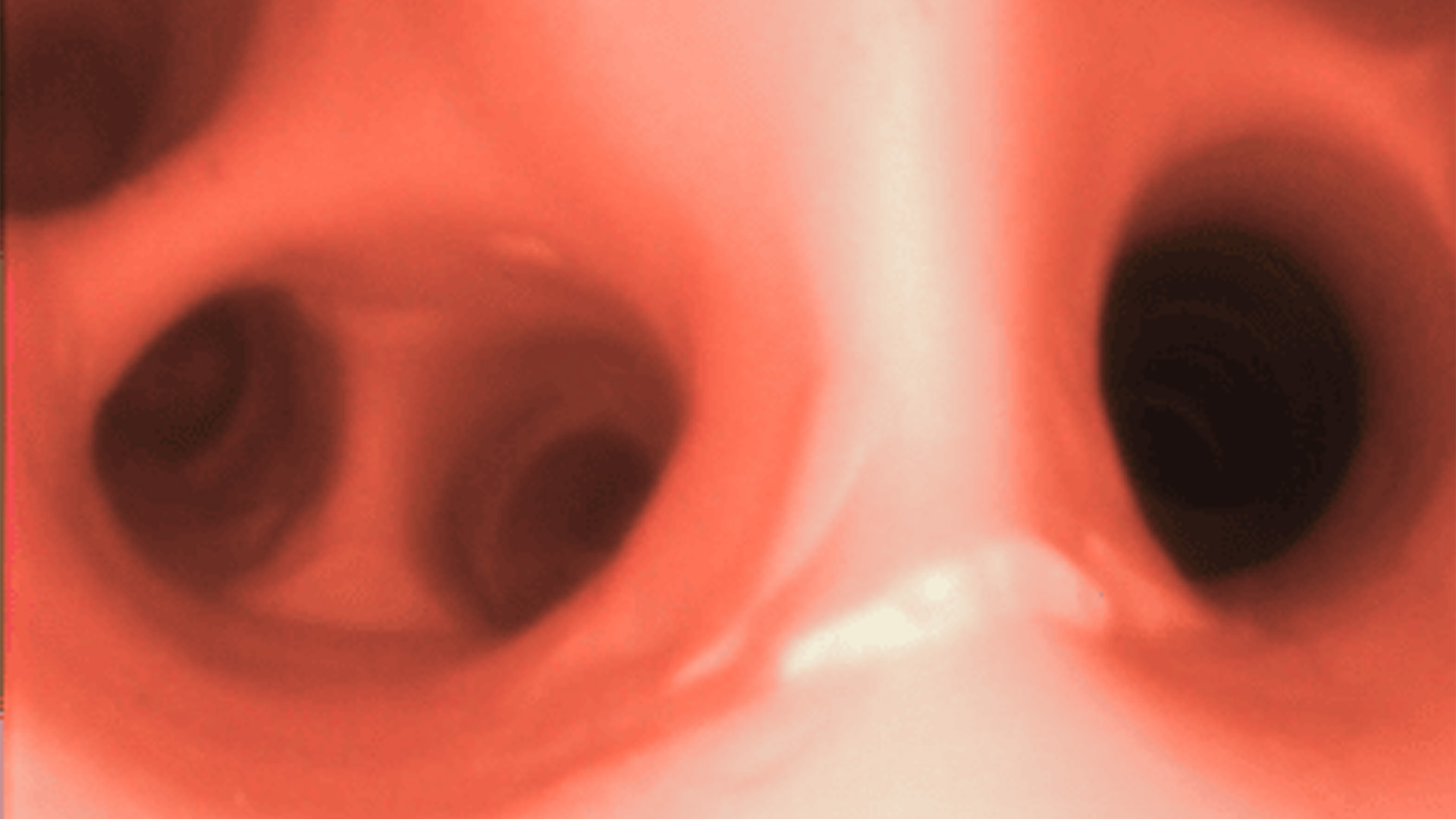

• Bronchus
• Bronchioles

3 Year Warranty

This model comes with a 3 Year Warranty. This warranty applies to models which have been used correctly and covers durability and functionality.
